Sprinkler Tank Relining & Repair
Sprinkler tank repair and refurbishment is now one of Nationwide Water Solutions core lines of business. Over the last three years we have refurbished or repaired a huge number of sprinkler tanks throughout the UK. Sprinkler tanks can range from around 100,000 litres up to around 2 million litres. Our largest sprinkler tank refurbishment project to date is a 1.2 million litre project in Basildon.
Sprinkler Tank Relining & Epoxy Coating
Sprinkler tanks can be refurbished using two methods; the epoxy coating system and the flexible lining system. The flexible lining system is generally used in circumstances where tanks have an existing faulty lining or epoxy coating is not a viable option.

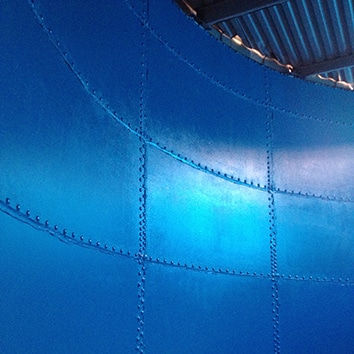

The sprinkler epoxy coating system involves the draining and cleaning of the vessel, followed by fibreglass repairs to all leaking and badly corroded areas. The tanks internal surfaces are then cleaned and a three coat epoxy paint system is then applied to prevent any further corrosion.

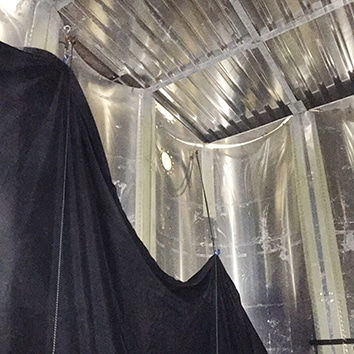

The flexible lining system involves the draining and cleaning of the vessel, followed by the removal of one lower tank panel. A geomembrane protection layer is then applied to the sprinkler tanks base and walls to protect the lining. The lining is then positioned at the base of the tank; the lining walls are then hoisted into position and secured just below the sprinkler tanks lid. The lining material itself is used as a gasket for all sprinkler tank connections.
During the sprinkler repair or refurbishment procedure, a number of health and safety issues have to be addressed. All our engineers are Confined Space, Working at Height, Mobile Scaffold and First Aid Trained. If you require any further information on our sprinkler refurbishment and repair systems, please call our offices on 0345 505 2540.
Tank refurbishment can be carried out using the epoxy coating system or the flexible lining system. The flexible lining system is generally used in circumstances where sprinkler tanks have an existing faulty lining or are beyond manual repair. The Epoxy coating system consists of draining and cleaning of the vessel, followed by fibreglass repairs to all leaking and corroded areas. Once the internal surfaces are cleaned a three coat epoxy paint system is then applied to prevent further corrosion.
Sprinkler Tank Relining Overview
Sprinkler tank relining is a cost-effective and efficient solution for extending the life of an existing fire protection water storage tank. Over time, sprinkler tanks, usually made from steel or concrete, can suffer from corrosion, leaks, or surface degradation due to constant exposure to water and fluctuating temperatures. Instead of replacing the entire tank, relining involves applying a new protective coating or liner to the interior surface, restoring its integrity and performance.
This process typically begins with draining and cleaning the tank, followed by surface preparation such as grit blasting to remove rust and debris. A high-performance lining material—such as epoxy, EPDM, or a butyl rubber membrane is then applied to form a seamless, waterproof barrier. This not only prevents further corrosion and leakage but also ensures the tank remains compliant with fire safety standards and insurance requirements.
Sprinkler tank relining is suitable for a wide range of facilities, including commercial buildings, warehouses, hospitals, and industrial sites. It significantly reduces downtime compared to full tank replacement and can extend the tank’s usable life by 10 to 20 years. Regular inspection and timely relining help maintain reliable fire protection systems and avoid costly emergency repairs or tank failure during critical situations.
Free Sprinkler Site Survey
We offer a FREE NATIONWIDE sprinkler tank site visit, where we will carryout a visual inspection of the tank, both internally and externally. A portable pole camera will be used to give an overall condition of the tanks internal condition. Based on the results, we will forward a list of recommendations, and a quote for any remedial works.
